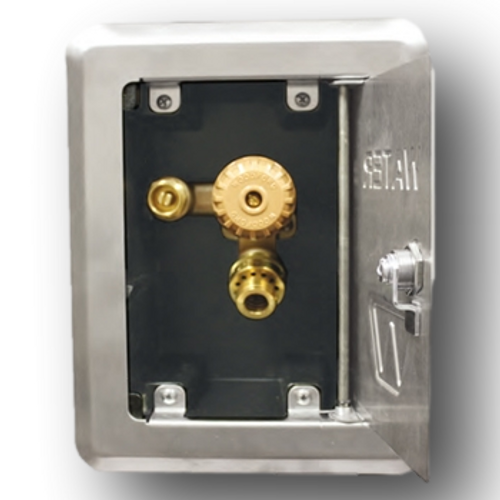

Woodford MB224 Mild Climate Integral Water Supply Stop and Modular Box.

 The MB224 is a water supply box with an integral water supply stop that allows for servicing of the valve at the hydrant without shutting off the building water supply. The boxed hydrants are intended for irrigation purposes and use in interior or exterior applications where freezing temperatures do not occur.

NIDEL® 34HF Anti Siphon Vacuum Breaker • ASSE 1011, CSA, IAPMO • No spray back

FEATURES:

• Modular Box System

• Box made out of high impact and non-degradable composite material

• Replaceable 14 Ga 304 Stainless Steel Door & Fascia

• Door and Fascia replaceable without removing box or hydrant

• Standard Tee Key or Optional Cylinder Lock

• ¾″ male hose nozzle

• 1/2-14 FPT Inlet

• Red brass head

• Integral water supply stop

• EPDM packing and seats

• Spring loaded door for easy access

• Includes both polycarbonate handle and metal tee key with tamper resistant lock shield

• Max Rated Pressure: 125 p.s.i.

• Max Rated Temperature: 120° F

New York Replacement Parts is a proud distributor of Woodford products. This Woodford MB224 Mild Climate Integral Water Supply Stop and Modular Box is a direct replacement manufactured by Woodford. Order this Woodford MB224 Mild Climate Integral Water Supply Stop and Modular Box today.
